China Marine Turbocharger Parts manufacturer

Martine VTC Turbocharger ABB Turbos For VTC214 VTC254 VTC304 Model

Product Details:
Place of Origin: Chongqing,China
Brand Name: BF
Certification: ISO 9001:2000
Model Number: VTC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 5000 pieces per year
Contact Now

Detail Information

Engine Type: Diesel Application: Marine, Drilling And Mining Industry
Output Range: 500 To 3,200 Kw Delivery: Received Payment
Type: Turbocharger VTC Series: VTC214 VTC254 VTC304

Product Description

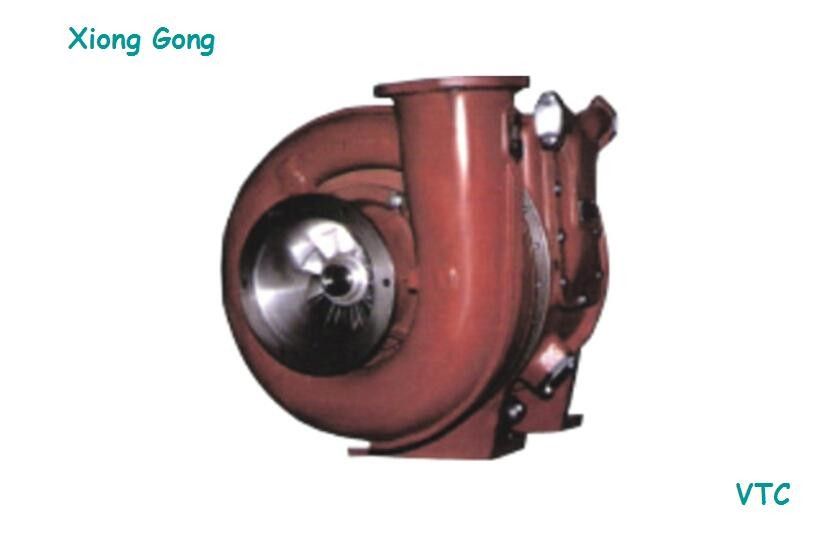

ABB Martine Turbocharger VTC Series for Ship Diesel Engine



Products Introduction



The VTC turbocharger is designed for the diesel engine with an output range of 500 to 3,200 kw. The turbocharger is characterized by its high compactness which is achieved through the use of internal plain bearings lubricated by the engine lube oil system.
The VTC turbochargers are no longer in production. They are now fully in service by our global service network and Original Spare parts are available to keep your application running



VTC series



VTC214
VTC254
VTC304



Main Technical Parameters

Martine VTC Turbocharger ABB Turbos For VTC214 VTC254 VTC304 Model



Type Overall Dimensions(mm) Weight(Kg)
A B A+B C A+C D E F E+F G H
ZN250 255 590 845 610 865 652 295 280 575 255 460 350
ZN290 315 725 1040 723 1038 705 350 340 690 300 550 475
ZN290P 315 725 1040 723 1038 705 350 340 690 300 550 525
ZN350 325 855 1180 850 1175 882 415 405 820 340 655 730
ZN350P 325 855 1180 850 1175 882 415 405 820 340 655 780

Volume Technical Data

Martine VTC Turbocharger ABB Turbos For VTC214 VTC254 VTC304 Model

Design Features

  • Requirement:filtration rating is less than 20μm
  • Compressor type:centrifugal compressor
  • Pressure plates:vaned diffuser type
  • Cooling method for casings:non-water-cooling method is adopted for gas inlet casing, and water-cooling method for outlet casing.
  • Total efficiency:more than 60%




Products Features

  • VTC turbochargers are of extremely robust design, dimensioned to last the useful life of the engine and undermanding in operation.
  • High reliability is achieved through a commitment of highest manufacturing quality and close tolerances.
  • All spare parts can be used without re-machining.
  • All VTC turbochargers are provided with water connections at the compressor end, enabing them to be washed with water.



Martine VTC Turbocharger ABB Turbos For VTC214 VTC254 VTC304 Model





Our Service

  • All complete turbocharger series and spare parts provided.
  • Good quality promised.
  • Competitive price.
  • 24-hour service available.
  • One year warranty .
  • Samples and Drawings are welcomed for development.
  • Your professional consultant to meet your requirements.
  • Certificate can be provided.
