ABB Turbocharger VTR Air Inlet Casing Turbocharger Components Parts

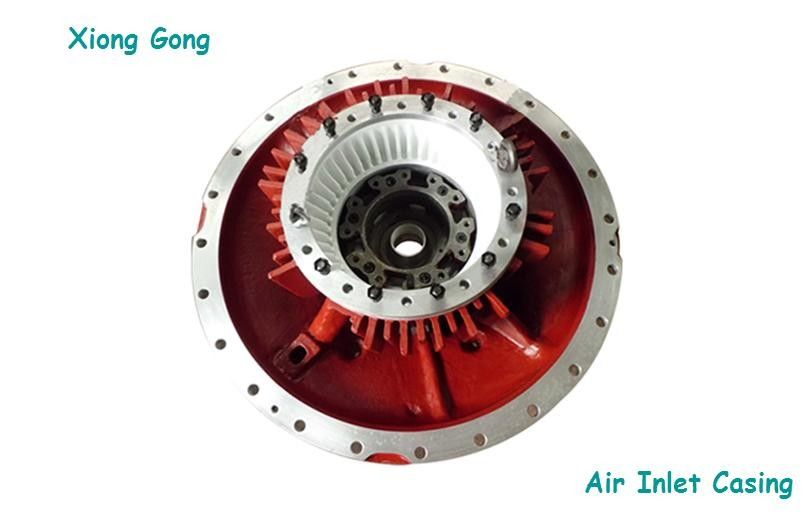

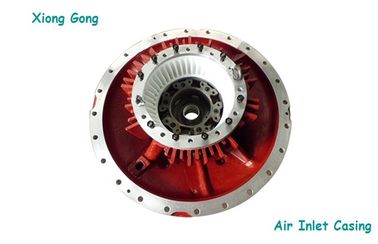

ABB Martine Turbocharger VTR Series Air inlet casing for Ship Diesel Engine

Products Introduction

VTR series supercharger is axial-flow turbocharger, which consists of single-stage axial-flow turbine and centrifugal compressor, and adopts outborad supportroller bearing and self-supply system of shaft-end centrifugal lube oil pump or gear lube oil pump. Its majo casing can rotate freely in 15°or 30° interval according to installation angle. Flow range of this series turbocharger is 0.5-18m3/s, compression ratio range 2.0-4.0 and total efficiency up to 62%. Single turbocharger can satisfy requirement of 250-10000kw high speed diesel engine. VTR turbochargers are widely used for marine main engines, marine auxiliary machines, land-based generating set and other application areas of diesel engines due to their high reliability, stability and applicability.

Applicable models



Main Technical Parameters

Volume Technical Data


Design Features

• Compressor type: centrifugal compressor
• Pressure plates: vaned diffuser type
• Compressor efficiency: up to 80%
• Turbine efficiency: up to 82%
• Total efficiency: more than 62%


Products Features

• It consists of single-stage axial turbine and radial compressor
• The single unit can be matched with medium speed two & four-Stroke diesel engine of 500-18000 kw
• The external supporting roller bearing shaft end centrifugal oil pump or gear oil pump self- supply structure
• Gas inlet casing divide into water-cooling and uncooled two type to satisfied with best efficiency of diesel engine. It can be achieved under different load conditions
• The variation of turbine blade height is consistent with the changing area of the nozzle ring
• The overall efficiency of T/C is 58%-62%, with the maximum pressure ratio of 4.0
• It is widely used in Marine main engine and auxiliary engine for burning heavy fuel oil
