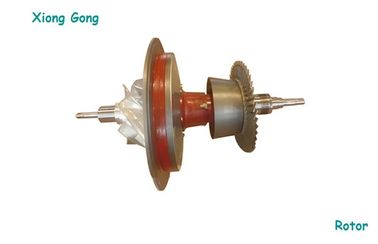

NA/TCA Series IHI MAN Turbocharger Supercharger Rotors For Ship Diesel Engine

NA/TCA Series IHI MAN Turbocharger Supercharger Rotors For Ship Diesel Engine
NA/TCA Series IHI MAN Turbocharger Supercharger Rotors For Ship Diesel Engine

Large Image :  NA/TCA Series IHI MAN Turbocharger Supercharger Rotors For Ship Diesel Engine

Product Details:
Place of Origin: Chongqing,China
Brand Name: BF
Certification: ISO 9001:2000
Model Number: NA/TCA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 5000 pieces per year

NA/TCA Series IHI MAN Turbocharger Supercharger Rotors For Ship Diesel Engine

Description
Engine Type: Diesel Application: Ship Diesel Engine
Warranty: 1 Year Name: Supercharger Rotors
Type: IHI MAN Turbocharger Model: NA/TCA Series
High Light:

Integrated Turbocharger Shaft

,

IHI MAN Gas Turbine Shaft

,

Ship Diesel Turbocharger Supercharger Rotors

IHI/MAN Martine Turbocharger NA/TCA Series Rotor Complete for Ship Diesel Engine



Products Introduction



The TCA series redefines the proven technology of the successful NA series. The integrated design makes installation and maintenance faster and easier than ever before. And with the advanced materials used, life span is far longer than ever before.



Applicable models



NA34/T NA34/S TCA33
NA40/T NA40/S TCA44
NA48/T NA48/S TCA55
NA57/T NA57/T9 TCA66
NA70/T NA70/T9 TCA77



Main Technical Parameters



type Length (mm) Width (mm) Height (mm)
TCA33 1735 895 966
TCA44 2,084 1,075 1,160
TCA55 2,472 1,275 1,377
TCA66 2,937 1,515 1,636
TCA77 3,490 1,800 1,944
TCA88 4,144 2,138 2,309



Turbine type Max. supercharged engine output [kW] Mass [kg]
  2-stroke engines (le=9* kg/kWh) 4-stroke engines (le=6,5* kg/kWh) Max. permissible speed
TCA33   5,400 27,800 1,140
TCA44 7,000 7,900 22,700 1,970
TCA55 9,600 10,400 20,000 3,290
TCA66 14,000 14,800 16,900 5,510
TCA77 20,000 21,000 14,200 9,250
TCA88 30,000 30,000 12,000 15,790

Volume Technical Data

NA/TCA Series IHI MAN Turbocharger Supercharger Rotors For Ship Diesel Engine 0

Design Features

  • Turbine type: axial flow
  • Maximum pressure ratio of 5.5
  • Max. permiss. temp: 500℃/650℃
  • Reduced number of parts
  • Integrated containment area



Products Features

  • High performance floating bearings for minimized mechanical losses and optimized damping behavior
  • Integrated oil piping , sealing air and venting system
  • Compressor wheel change with basic tools and no need of rebalancing the complete rotor
  • Reduced noise emission and increased efficiency
  • Suitable for HFO, MDO, Gas



Our Service

  • All complete turbocharger series and spare parts provided.
  • Good quality promised.
  • Competitive price.
  • 24-hour service available.
  • One year warranty .
  • Samples and Drawings are welcomed for development.
  • Your professional consultant to meet your requirements.
  • Certificate can be provided.







FAQ



Questions & Answers
Q: When will you deliver the goods?
A: About one week after payment. It also depends on the quantity and whether you need mould making.

Q: How about quality of products?
A: We strictly control every detail of the products. Each product is inspected before leaving factory, with the top quality of China.

Q: How about price?
A: We will offer you the best and competetive price.

Q:Do you accept customized orders?
A: Yes. With design team, OEM and ODM orders are highly welcome.

Q:Which transportation do you accept?
A: DHL, FedEx, EMS etc, as for your convenience.

Q:What about payment terms?
A: T/T, L/C, PayPal and West Union are acceptable.

Q:Can you accept mould making?
A: Yes.
