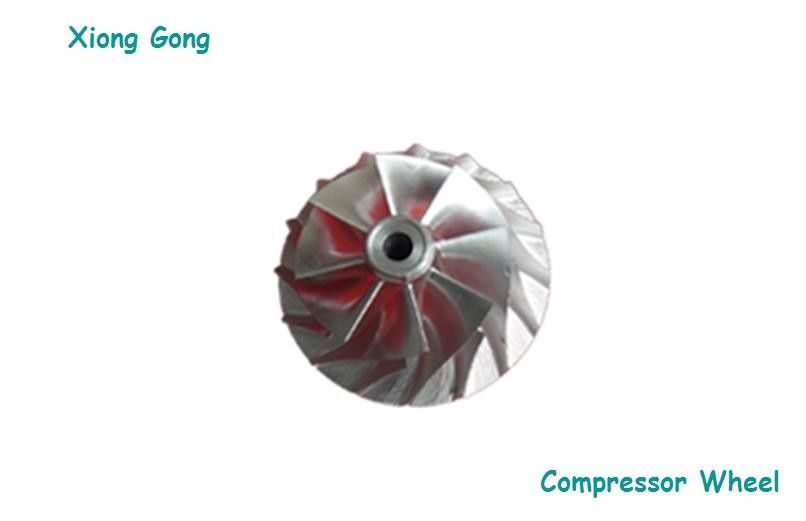

centrifugal compressor Turbocharger Compressor Wheel ABB Martine Turbocharger RR Series

centrifugal compressor Turbocharger Compressor Wheel ABB Martine Turbocharger RR Series
centrifugal compressor Turbocharger Compressor Wheel ABB Martine Turbocharger RR Series

Large Image :  centrifugal compressor Turbocharger Compressor Wheel ABB Martine Turbocharger RR Series

Product Details:
Place of Origin: Chongqing,China
Brand Name: BF
Certification: ISO 9001:2000
Model Number: RR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 5000 pieces per year

centrifugal compressor Turbocharger Compressor Wheel ABB Martine Turbocharger RR Series

Description
Engine Type: Diesel Application: Shipbuilding, Locomotive
Name: Turbocharger Compressor Wheel Delivery: Received Payment
Type: Turbocharger Compressor: Centrifugal Compressor
High Light:

turbo compressor wheel

,

turbocharger turbine wheel

ABB Martine Turbocharger RR Series Compressor Wheel for Ship Diesel Engine



Products Introduction



RR series supercharger is mixed-flow turbocharger, which consists of single-stage mixed-flow turbine and centrifugal compressor, adopts inboard support roller bearing and centrifugal compressor, adopts inboard support roller bearing and external lube oil supply structure. There is no nozzle ring on the turbocharger. The major casing can rotate freely within 0-360° according to installation angel. Flow range of this series turbocharger is 0.6-2.5m3/s, compression ratio range 1.5-3.0 and total efficiency higher than 80%. Single turbocharger can cooperate with 250-1500kw high speed diesel engine and gas engine. RR turbochargers are used widely in shipbuilding, locomotive, land power generation and petroleum drilling industries. They are extensively applicable to in-land and coastal transportation and fishing due to its high efficiency, small size, light weight, favorable maintainability and serviceability, adequate supply of spare parts.



Applicable models



RR131 RR181
RR151 RR180
RR150 RR221
RR153 RR212



Main Technical Parameters

centrifugal compressor Turbocharger Compressor Wheel ABB Martine Turbocharger RR Series 0



Type Overall Dimensions(mm) Weight(Kg)
  A B A+B D E F G H J A+J
J140 210 376 587 315 106 130 182 121 141 351 70
J160 233 433 666 361 130 140 211 139 162 395 110
J190 285 528 813 444 148 170 259 170 198 483 190
J210 348.5 642 990.5 542 181 209 314 255 241.5 590 360

Volume Technical Data

centrifugal compressor Turbocharger Compressor Wheel ABB Martine Turbocharger RR Series 1

Design Features

  • Compressor vanes: forward inclined and backward curved blades
  • Pressure plates: vaned diffuser type.
  • Bearing casing: there are water-cooling type and non-water-cooling type available, which are adopted according to requirement.
  • Total efficiency: more than 62%
  • Requirement of external lube oil supply: filtration rating is less than 35μm, and lube oil for diesel engine can be used directly.

Products Features

  • It consists of radial flow turbine and centrifugal compressor
  • The single unit can be matched with high-speed diesel engine and gas engine of 250-1500kw
  • Inner bracing full floating plain bearing with cooled & uncooled bearing casing design
  • Gas turbo housing with different nozzle area and be equipped with one and two inlet hole tangential design
  • The compressor wheel adopts forward bending
  • The overall efficiency of T/C is 55%-60%, with the maximum pressure ratio of 3.5
  • High efficiency and small volume is widely used in all kinds of high-speed generator set & fishery shipping







PACKING AND DELIVERY



Packing:

  • Plastic bag
  • selling box
  • carton/wooden pallet
  • etc.

Delivery Port in China:

  • Chongqing port,
  • Shanghai Port,
  • Guangzhou Port,
  • Ningbo Port.

Delivery way:

  • by sea,
  • by air,
  • by express
  • by land

Payment

  • T/T
  • L/C
  • Paypal
  • West Union
  •



FAQ



Questions & Answers
Q: When will you deliver the goods?
A: About one week after payment. It also depends on the quantity and whether you need mould making.

Q: How about quality of products?
A: We strictly control every detail of the products. Each product is inspected before leaving factory, with the top quality of China.

Q: How about price?
A: We will offer you the best and competetive price.

Q:Do you accept customized orders?
A: Yes. With design team, OEM and ODM orders are highly welcome.

Q:Which transportation do you accept?
A: DHL, FedEx, EMS etc, as for your convenience.

Q:What about payment terms?
A: T/T, L/C, PayPal and West Union are acceptable.

Q:Can you accept mould making?
A: Yes.
