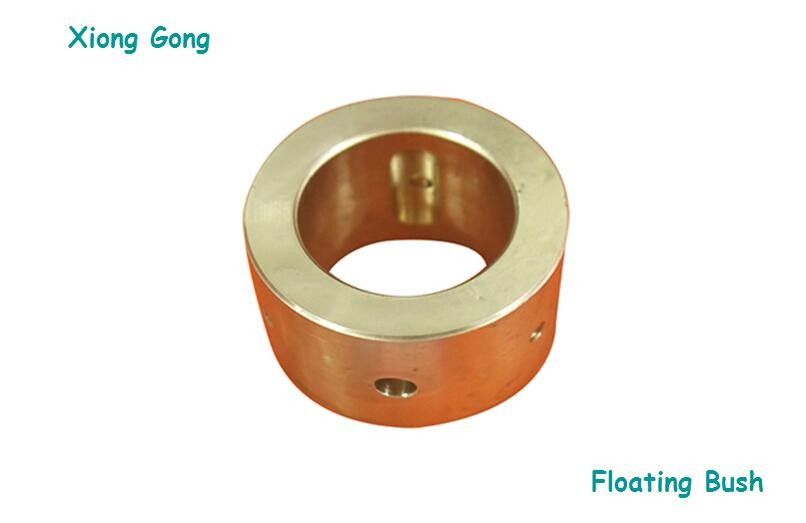

ABB RR Turbocharger Repair Kit Floating Bush for Ship Diesel Engine

ABB Martine Turbocharger RR Series Floating Bush for Ship Diesel Engine

Products Introduction

RR series supercharger is mixed-flow turbocharger, which consists of single-stage mixed-flow turbine and centrifugal compressor, adopts inboard support roller bearing and centrifugal compressor, adopts inboard support roller bearing and external lube oil supply structure. There is no nozzle ring on the turbocharger. The major casing can rotate freely within 0-360° according to installation angel. Flow range of this series turbocharger is 0.6-2.5m3/s, compression ratio range 1.5-3.0 and total efficiency higher than 80%. Single turbocharger can cooperate with 250-1500kw high speed diesel engine and gas engine. RR turbochargers are used widely in shipbuilding, locomotive, land power generation and petroleum drilling industries. They are extensively applicable to in-land and coastal transportation and fishing due to its high efficiency, small size, light weight, favorable maintainability and serviceability, adequate supply of spare parts.

Applicable models

Main Technical Parameters

Volume Technical Data

Design Features

• Compressor vanes: forward inclined and backward curved blades
• Pressure plates: vaned diffuser type.
• Bearing casing: there are water-cooling type and non-water-cooling type available, which are adopted according to requirement.
• Total efficiency: more than 62%
• Requirement of external lube oil supply: filtration rating is less than 35μm, and lube oil for diesel engine can be used directly.

Products Features

• It consists of radial flow turbine and centrifugal compressor
• The single unit can be matched with high-speed diesel engine and gas engine of 250-1500kw
• Inner bracing full floating plain bearing with cooled & uncooled bearing casing design
• Gas turbo housing with different nozzle area and be equipped with one and two inlet hole tangential design
• The compressor wheel adopts forward bending
• The overall efficiency of T/C is 55%-60%, with the maximum pressure ratio of 3.5
• High efficiency and small volume is widely used in all kinds of high-speed generator set & fishery shipping

Our Service

• All complete turbocharger series and spare parts provided.
• Good quality promised.
• Competitive price.
• 24-hour service available.
• One year warranty .
• Samples and Drawings are welcomed for development.
• Your professional consultant to meet your requirements.
• Certificate can be provided.

PACKING AND DELIVERY

Packing:

• Plastic bag
• selling box
• carton/wooden pallet
• etc.

Delivery Port in China:

• Chongqing port,
• Shanghai Port,
• Guangzhou Port,
• Ningbo Port.

Delivery way:

• by sea,
• by air,
• by express
• by land

Payment

• T/T
• L/C
• Paypal
• West Union
