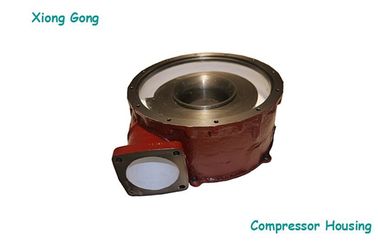

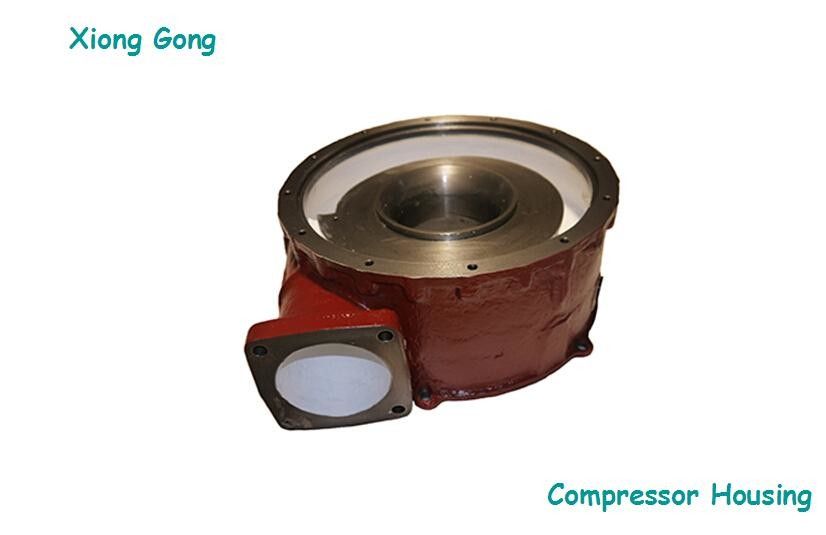

IHI/MAN Martine Turbo Compressor Housing RH Series Turbo Compressor Cover

IHI/MAN Martine Turbocharger RH Series Compressor Housing for Ship Diesel Engine

Products Introduction

RH series turbocharger consist of single-stage turbine and centrifugal compresssor. This series of turbocharer can be used to match high-speed diesel engine power 300-110kw. RH series turbocharger can be widely used in marine, drilling and mining industry application.

Applicable models

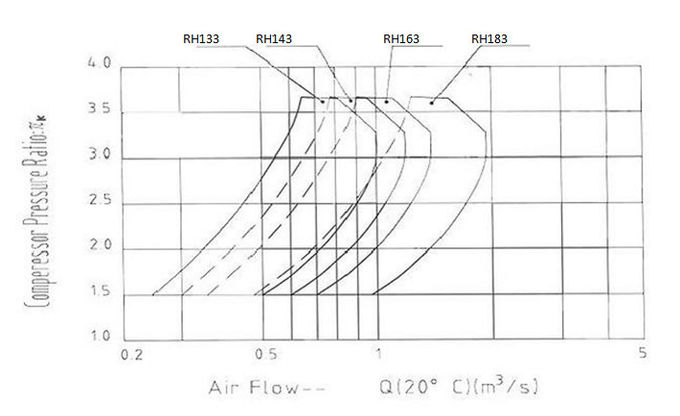

Main Technical Parameters

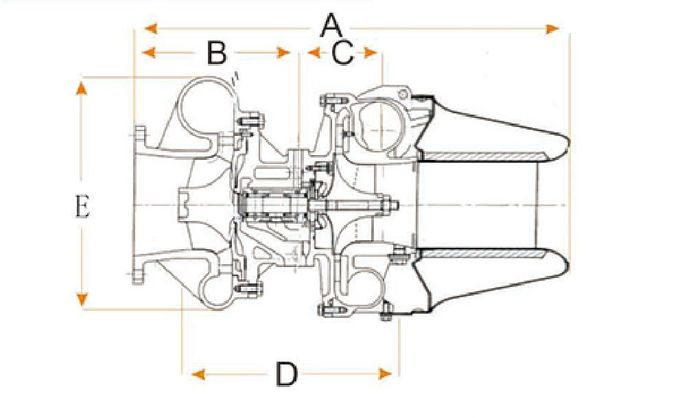

Volume Technical Data

Design Features

• High reliability: Excellent bearing stability system, high quality oil sealing performance, low temperature resistance setting and strict quality management to ensure the reliability and excellent performance of IHI turbine.
• superior performance: the use of advanced aerodynamics design turbine blade, and minimize mechanical losses, and with low inertia design, IHI turbine has superior performance in high flow rate, large range and rapid pressure response.
• Lightweight design: IHI's RH series is reduced in size and weight and maintains the strength necessary for the turbine.
• Wide application: IHI turbines are available in a wide range of models to provide customers with the widest range of applications.

Products Features

• It consists of single-stage mixed turbine and centrifugal compressor
• The single unit can be matched with four-Stroke diesel engine of 400-2000kw
• Inboard plain bearing lubricated by the engine oil system
• With double inlet exhaust gas turbine casing with nozzle ting
• The blade wheel of the compressor adopts the back bend and tilt Angle
• The overall efficiency of T/C is 60%-62%, with the maximum pressure ratio of 3.6
• It is widely used in Marine generator, drilling and mining field
