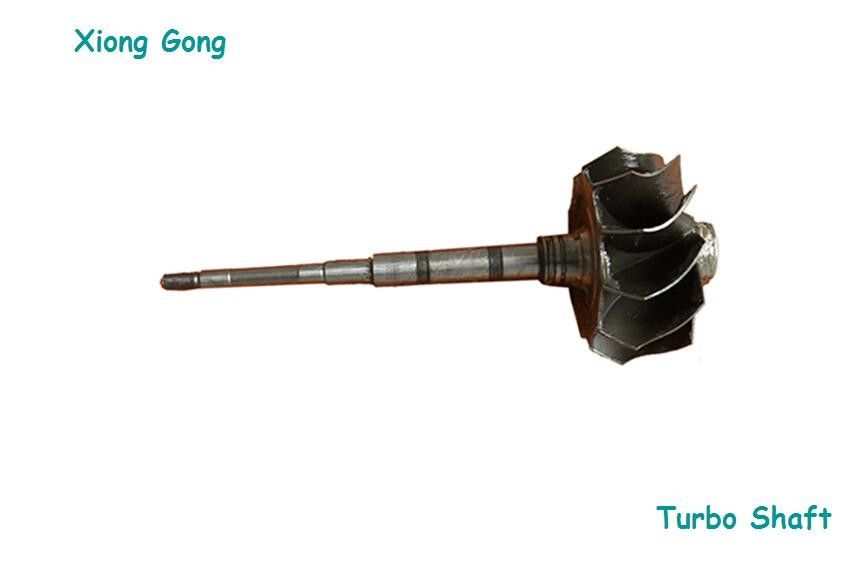

Professional Gas Turbine Shaft IHI MAN Turbocharger RH Series

Professional Gas Turbine Shaft IHI MAN Turbocharger RH Series
Professional Gas Turbine Shaft IHI MAN Turbocharger RH Series

Large Image :  Professional Gas Turbine Shaft IHI MAN Turbocharger RH Series

Product Details:
Place of Origin: Chongqing,China
Brand Name: BF
Certification: ISO 9001:2000
Model Number: RH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 5000 pieces per year

Professional Gas Turbine Shaft IHI MAN Turbocharger RH Series

Engine Type: Diesel Application: Marine, Drilling And Mining Industry
Name: Gas Turbine Shaft Model: IHI MAN RH Series
Type: IHI MAN Turbocharger Turbine: Single Stage Turbine
High Light:

turbo shaft and wheels


gas turbine shaft

IHI/MAN Martine Turbocharger RH Series Turbine Shaft for Ship Diesel Engine


Products Introduction


RH series turbocharger consist of single-stage turbine and centrifugal compresssor. This series of turbocharer can be used to match high-speed diesel engine power 300-110kw. RH series turbocharger can be widely used in marine, drilling and mining industry application.


Applicable models



RH1022 RH163
RH1222 RH183
RH133 RH203
RH143 AT14


Main Technical Parameters

Professional Gas Turbine Shaft IHI MAN Turbocharger RH Series 0

Model Overall Dimension(mm) Weight
  A B C D E
RH133 765 405 284 323 393 54
RH143 908 456 316 361 458 146
RH163 981 537 362 426 533 159
RH183 1188 655 443 518 656 289

Volume Technical Data

Professional Gas Turbine Shaft IHI MAN Turbocharger RH Series 1

Design Features

  • High reliability: Excellent bearing stability system, high quality oil sealing performance, low temperature resistance setting and strict quality management to ensure the reliability and excellent performance of IHI turbine.
  • superior performance: the use of advanced aerodynamics design turbine blade, and minimize mechanical losses, and with low inertia design, IHI turbine has superior performance in high flow rate, large range and rapid pressure response.
  • Lightweight design: IHI's RH series is reduced in size and weight and maintains the strength necessary for the turbine.
  • Wide application: IHI turbines are available in a wide range of models to provide customers with the widest range of applications.


Products Features

  • It consists of single-stage mixed turbine and centrifugal compressor
  • The single unit can be matched with four-Stroke diesel engine of 400-2000kw
  • Inboard plain bearing lubricated by the engine oil system
  • With double inlet exhaust gas turbine casing with nozzle ting
  • The blade wheel of the compressor adopts the back bend and tilt Angle
  • The overall efficiency of T/C is 60%-62%, with the maximum pressure ratio of 3.6
  • It is widely used in Marine generator, drilling and mining field


Our Service

  • All complete turbocharger series and spare parts provided.
  • Good quality promised.
  • Competitive price.
  • 24-hour service available.
  • One year warranty .
  • Samples and Drawings are welcomed for development.
  • Your professional consultant to meet your requirements.
  • Certificate can be provided.





Questions & Answers
Q: When will you deliver the goods?
A: About one week after payment. It also depends on the quantity and whether you need mould making.

Q: How about quality of products?
A: We strictly control every detail of the products. Each product is inspected before leaving factory, with the top quality of China.

Q: How about price?
A: We will offer you the best and competetive price.

Q:Do you accept customized orders?
A: Yes. With design team, OEM and ODM orders are highly welcome.

Q:Which transportation do you accept?
A: DHL, FedEx, EMS etc, as for your convenience.

Q:What about payment terms?
A: T/T, L/C, PayPal and West Union are acceptable.

Q:Can you accept mould making?
A: Yes.
