Product Details:
|
| Engine Type: | Diesel | Name: | Gas Outlet Casing |
|---|---|---|---|
| Warranty: | 1 Year | Features: | Long Life Span |
| Type: | IHI/MAN Martine Turbocharger | Applicable Models: | NA34/T NA34/S TCA33 Ect. |
| High Light: | IHI MAN Turbo Exhaust Housing,Diesel Engine Turbo Center Housing,TCA Series Gas Outlet Casing |
||

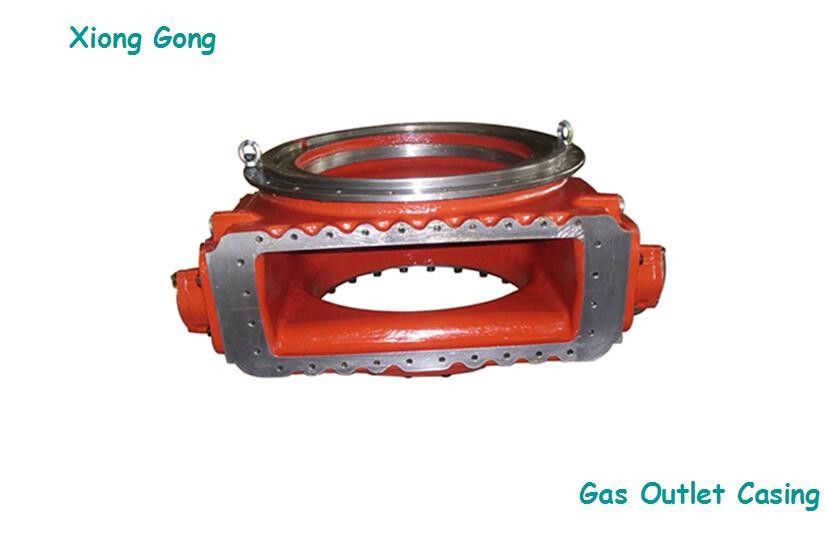

IHI/MAN Martine Turbocharger NA/TCA Series Gas Outlet Casing for Ship Diesel Engine
Products Introduction
The TCA series redefines the proven technology of the successful NA series. The integrated design makes installation and maintenance faster and easier than ever before. And with the advanced materials used, life span is far longer than ever before.
Applicable models
| NA34/T | NA34/S | TCA33 |
| NA40/T | NA40/S | TCA44 |
| NA48/T | NA48/S | TCA55 |
| NA57/T | NA57/T9 | TCA66 |
| NA70/T | NA70/T9 | TCA77 |
Main Technical Parameters
| type | Length (mm) | Width (mm) | Height (mm) |
| TCA33 | 1735 | 895 | 966 |
| TCA44 | 2,084 | 1,075 | 1,160 |
| TCA55 | 2,472 | 1,275 | 1,377 |
| TCA66 | 2,937 | 1,515 | 1,636 |
| TCA77 | 3,490 | 1,800 | 1,944 |
| TCA88 | 4,144 | 2,138 | 2,309 |
| Turbine type | Max. supercharged engine output [kW] | Mass [kg] | ||
| 2-stroke engines (le=9* kg/kWh) | 4-stroke engines (le=6,5* kg/kWh) | Max. permissible speed | ||
| TCA33 | 5,400 | 27,800 | 1,140 | |
| TCA44 | 7,000 | 7,900 | 22,700 | 1,970 |
| TCA55 | 9,600 | 10,400 | 20,000 | 3,290 |
| TCA66 | 14,000 | 14,800 | 16,900 | 5,510 |
| TCA77 | 20,000 | 21,000 | 14,200 | 9,250 |
| TCA88 | 30,000 | 30,000 | 12,000 | 15,790 |
Volume Technical Data
Design Features
Products Features
Our Service
FAQ
Questions & Answers
Q: When will you deliver the goods?
A: About one week after payment. It also depends on the quantity and whether you need mould making.
Q: How about quality of products?
A: We strictly control every detail of the products. Each product is inspected before leaving factory, with the top quality of China.
Q: How about price?
A: We will offer you the best and competetive price.
Q:Do you accept customized orders?
A: Yes. With design team, OEM and ODM orders are highly welcome.
Q:Which transportation do you accept?
A: DHL, FedEx, EMS etc, as for your convenience.
Q:What about payment terms?
A: T/T, L/C, PayPal and West Union are acceptable.
Q:Can you accept mould making?
A: Yes.
