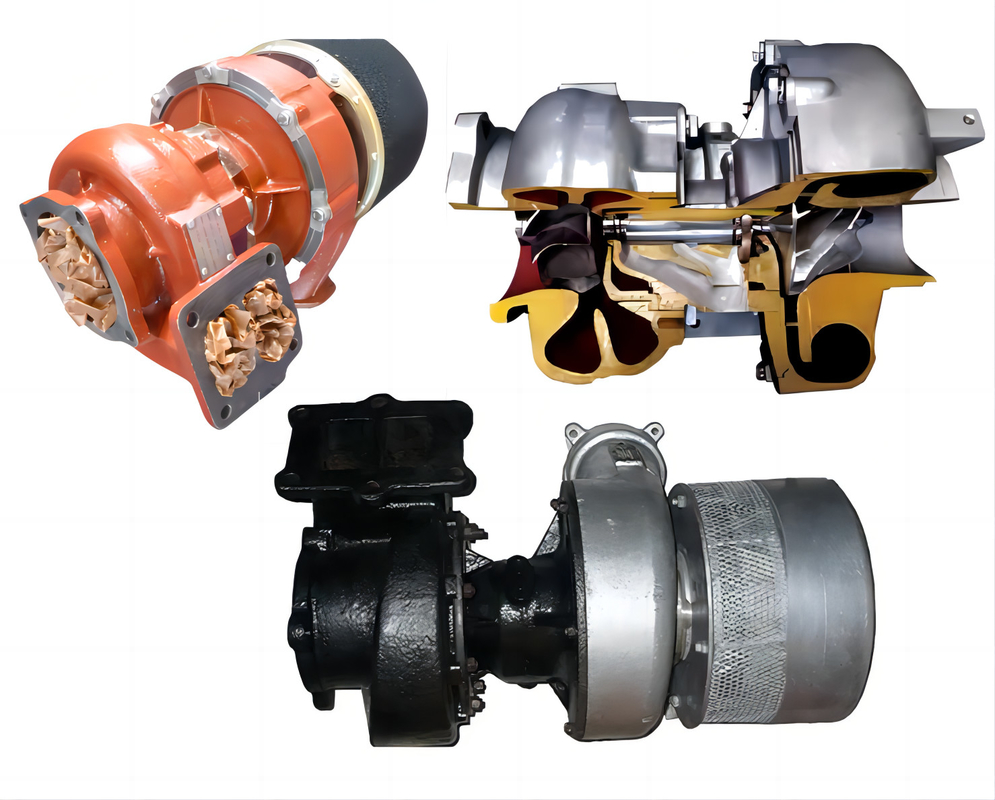

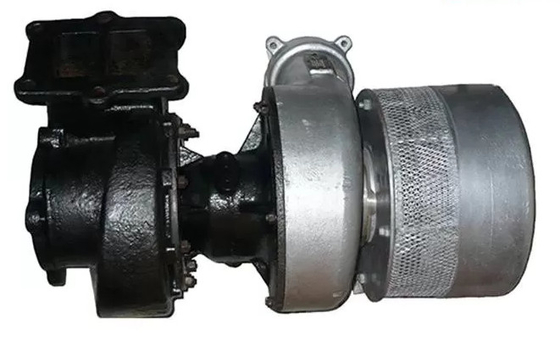

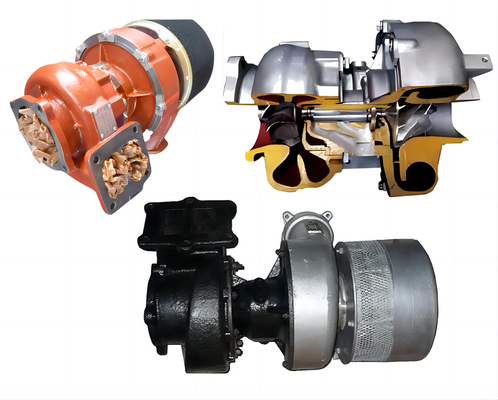

IHI MAN RH Series Turbocharger For Marine Industry

IHI MAN RH Series Turbocharger For Marine Industry

Product Overview:

The RH series marine turbocharger, engineered by IHI, represents the pinnacle of technological advancement in marine, drilling, and mining sectors. Renowned for its unwavering reliability and exceptional performance, this turbocharger is a cornerstone of power and efficiency in challenging environments.

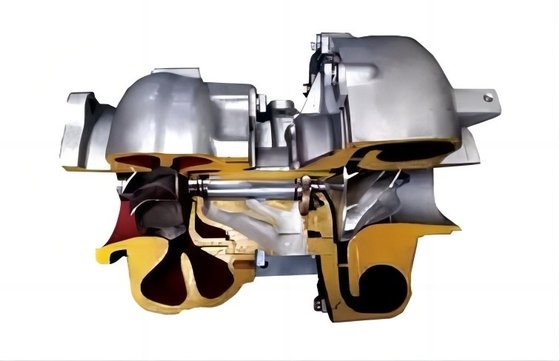

Key design features of IHI turbocharger RH models

1. The Francis turbine and radial compressor are assembled into a single unit.
2. Turbine side - Seal rings and heat shields are provided so that gases do not come into contact with the bearings.
3. Compressor side - sealing plates and sealing rings prevent air and oil leakage.
4. Thrust bearings prevent the shaft from moving due to thrust, and two types of journal bearings are available:

           i) Semi-floating type; Traditional floating bearings rotate, but semi-floating bearings do not rotate;
          ii) Fully floating type; When the bearing bush rotates, a double-layer oil film is formed on the inner and outer surfaces of the bearing.

Advantages of IHI Turbochargers

1. High reliability: Heat resistance, oil sealing performance and bearing stability ensure long life and reliability of the product.
2. Performance: Compressor and turbine wheels are designed for high flow, wide operating range and excellent response.

Application Spectrum:

Deployed across marine generators, drilling rigs, and mining equipment, the RH series turbocharger epitomizes reliability and performance in critical industrial operations. Its unmatched versatility and superior performance make it the preferred choice for demanding applications worldwide.

RH series

Main Technical Parameters

Volume Technical Data

FAQ

Q: When will you deliver the goods?
A: About one week after payment. It also depends on the quantity and whether you need mould making.

Q: How about quality of products?
A: We strictly control every detail of the products. Each product is inspected before leaving factory, with the top quality of China.

Q: How about price?
A: We will offer you the best and competetive price.

Q:Do you accept customized orders?
A: Yes. With design team, OEM and ODM orders are highly welcome.

Q:Which transportation do you accept?
A: DHL, FedEx, EMS etc, as for your convenience.

Q:What about payment terms?
A: T/T, L/C, PayPal and West Union are acceptable.

Q:Can you accept mould making?
A: Yes.
