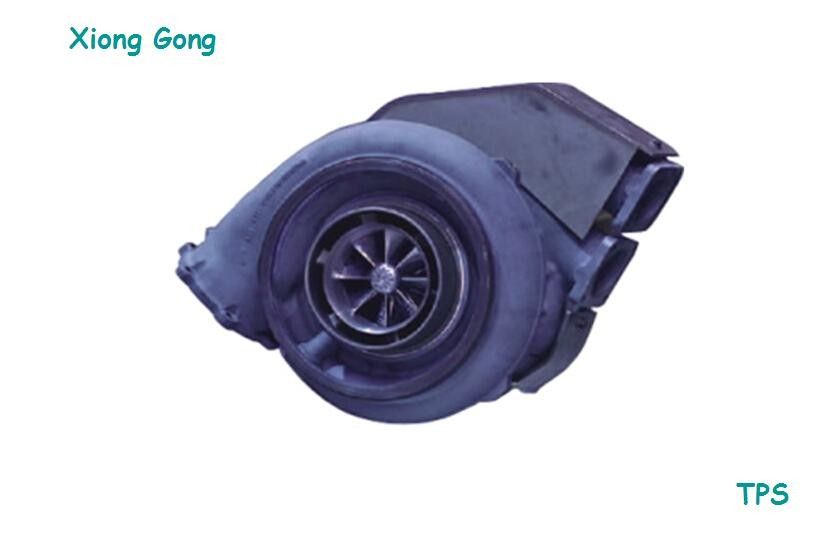

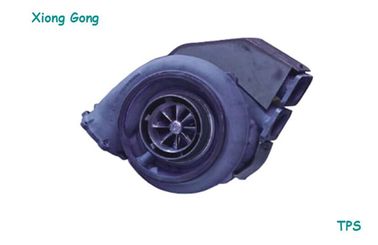

Durability ABB Turbocharger TPS Series Performance Turbochargers

Durability ABB Turbocharger TPS Series Performance Turbochargers
Durability ABB Turbocharger TPS Series Performance Turbochargers Durability ABB Turbocharger TPS Series Performance Turbochargers

Large Image :  Durability ABB Turbocharger TPS Series Performance Turbochargers

Product Details:
Place of Origin: Chongqing,China
Brand Name: BF
Certification: ISO 9001:2000
Model Number: TPS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 5000 pieces per year

Durability ABB Turbocharger TPS Series Performance Turbochargers

Description
Engine Type: ABB Turbocharger Application: Marine Main Engines
Warranty: 1 Year Delivery: Received Payment
Type: Performance Turbochargers Features: Firmness, Durability
High Light:

abb martine turbocharger

,

high performance turbochargers

ABB Martine Turbocharger TPS Series for Ship Diesel Engine



Products Introduction



ABB TPS turbocharger is mixed-flow turbocharger, which consists of single-stage mixed-flow turbine and centrifugal compressor, and adopts inboard support semi-floating sliding bearing and exteernal lube oil system. Gas inlet casing can rotate freely in 15° interval according to installation angle, and turbine casing could adopt free rotation method in 22.5° interval.Flow range of this series turbocharger is 0.7~5m³/s, compression ratio range 2.0~4.5 and total efficiency 64%. Single turbocharger can satify the requirement of 500kw~3000kw high speed diesel engine. This series turbochargers have virtues of simple and compact structure, firmness, durability, low operating cost, high performance and wide applicability, so that they are extensively applicable to marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.



TPS series



TPS44 TPS52
TPS48 TPS57
TPS50 TPS61



Main Technical Parameters

Durability ABB Turbocharger TPS Series Performance Turbochargers 0

Type Overall Dimensions (mm) Weight(Kg)
A B C D E F G H
TPS48 185 185 111 105 164 195 154 135 115
TPS52 220 215 132 129 187 224 186 161 166
TPS57 270 260 160 158 232 268 225 195 266
TPS61 322 306 193 188 275 320 270 234 458



Volume Technical Data

Durability ABB Turbocharger TPS Series Performance Turbochargers 1



Design Features

  • Compressor type:centrifugal compressor with forward inclined and backward curved blades
  • pressure plates:vaned diffuser type
  • Bearing casing:there are water-cooling type and non-water-cooling type available,which are adopted according to requirement
  • Total efficiency:more than 62%




Products Features

  • It consists of mixed-flow turbine and radial compressor, Lubricate internal bearings through engine lubricating oil
  • The single unit can be matched with high-speed diesel engine and gas engine of 500-3000kw
  • Inner bracing semi-floating plain bearing with cooled & uncooled bearing casing design
  • The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application
  • The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure
  • The overall efficiency of T/C is 62%-64%, with the maximum pressure ratio of 4.5
  • Compact structure, easy to maintain and widely used in diesel engine auxiliary generator set or engine unit etc.





Our Service

  • All complete turbocharger series and spare parts provided.
  • Good quality promised.
  • Competitive price.
  • 24-hour service available.
  • One year warranty .
  • Samples and Drawings are welcomed for development.
  • Your professional consultant to meet your requirements.
  • Certificate can be provided.

Durability ABB Turbocharger TPS Series Performance Turbochargers 2

FAQ



Questions & Answers
Q: When will you deliver the goods?
A: About one week after payment. It also depends on the quantity and whether you need mould making.

Q: How about quality of products?
A: We strictly control every detail of the products. Each product is inspected before leaving factory, with the top quality of China.

Q: How about price?
A: We will offer you the best and competetive price.

Q:Do you accept customized orders?
A: Yes. With design team, OEM and ODM orders are highly welcome.

Q:Which transportation do you accept?
A: DHL, FedEx, EMS etc, as for your convenience.

Q:What about payment terms?
A: T/T, L/C, PayPal and West Union are acceptable.

Q:Can you accept mould making?
A: Yes.
