Easy To Install ABB Turbocharger TPS Series High Performance

Easy To Install ABB Turbocharger TPS Series High-Performance​

ABB TPS series turbochargers have become the first choice products in marine engines, generator sets and other application fields due to their excellent performance characteristics and excellent adaptability.

Features:

1. Advantages of OEM accessories: Most spare parts are OEM accessories, ensuring ease of installation and use, and providing users with more reliable solutions.
2. Performance optimization: Optimizing the mixed-flow turbine through 3D-CFD improves the performance of the turbocharger, improves efficiency, and ensures the efficient operation of the engine.
3. Strong adaptability: The air intake housing can be flexibly adapted to constant pressure and pulse pressure turbocharging systems, suitable for various engine types, and has excellent adaptability.
4. Stress relief: The geometric design of the turbine warp and nozzle ring can effectively relieve stress and improve the stability and reliability of the equipment.

Bearing design:

1. The use of high-performance semi-floating support bearings minimizes mechanical losses, and the steel bearing part adopts a special hard coating to increase wear resistance and service life.
2. The compact sliding bearing layout not only brings ideal rotor dynamic performance, but also extends the service life of the bearings and ensures long-term stable operation of the equipment.

Product structure and performance parameters:

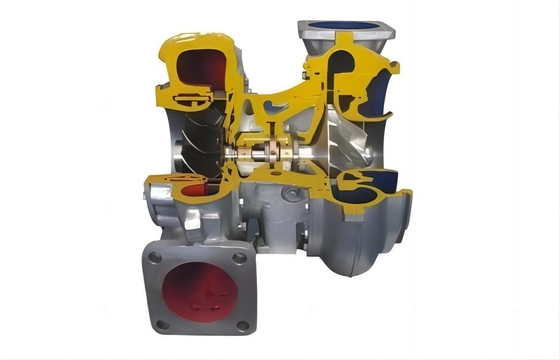

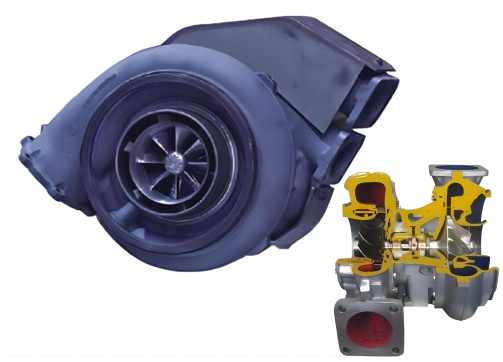

1. The ABB TPS turbocharger adopts a mixed-flow turbocharger design, consisting of a single-stage mixed-flow turbine and a centrifugal compressor, with built-in high-performance semi-floating support bearings and an external lubricating oil system.
2. The air intake housing can freely rotate at 15° intervals according to the installation angle, and the turbine housing can freely rotate at 22.5° intervals.
3. The flow range is 0.75m3/s, the compression ratio range is 2.04.5, and the total efficiency is as high as 64%.
4. A single turbocharger can meet the requirements of high-speed diesel engines from 500kw to 3000kw.
5. It has a simple and compact structure, is sturdy and durable, has low operating costs, has excellent performance and has wide applicability, making it an ideal turbocharger choice.

Other Functions:

1. All non-cooled enclosures reduce connections and are free from corrosion.
2. Rotor radial speed measurement allows convenient speed checking.
3. The end of the steam turbine is sealed by a piston ring and has a gas-assisted structure, which prevents oil leakage and coking.
4. The engine lubricating oil system is used for lubrication, with simple installation and few error sources.

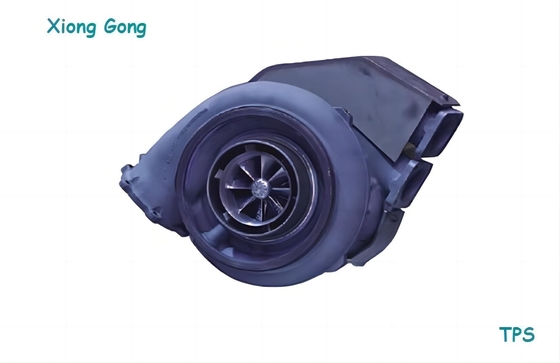

TPS series

Main Technical Parameters

Volume Technical Data

ABB TURBOCHARGER VTRNTC/TPS SERIES
A single stage centrifugal compressor and an axial turbine with outboard rolling bearings.It is developed for four-stroke medium-speed and high-speed dlesel engines with a power output range from 450 KW to 3200 KW.	A single stage centrifugal compressor and an axial turbine with inboard flm bearings.It is designed for four-stroke high-speed diesel engines with an output range from 600 KW to 3000 KW.	A single stage centrifugal compressorand a mixed flow turbine with inboard flm bearings.It is developed for four-stroke medium-speed and high-speed diesel engines,with an output range from 350 KW to 3200 KW.

​
