Product Details:
|
Engine Type: | Ship Diesel Engine | Application: | Marine, Drilling And Mining Industry |
---|---|---|---|
Warranty: | 1 Year | Delivery: | Received Payment |
Type: | Turbocharger | Name: | Turbine Nozzle Ring |
High Light: | turbo nozzle ring,turbine nozzle ring |

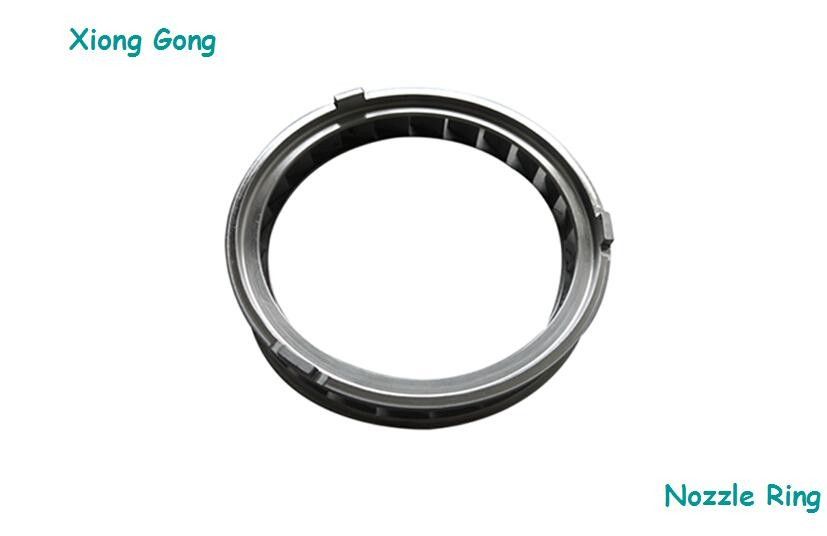

ABB Martine Turbocharger TPS Series Nozzle Ring for Ship Diesel Engine
Products Introduction
ABB TPS turbocharger is mixed-flow turbocharger, which consists of single-stage mixed-flow turbine and centrifugal compressor, and adopts inboard support semi-floating sliding bearing and exteernal lube oil system. Gas inlet casing can rotate freely in 15° interval according to installation angle, and turbine casing could adopt free rotation method in 22.5° interval.Flow range of this series turbocharger is 0.7~5m³/s, compression ratio range 2.0~4.5 and total efficiency 64%. Single turbocharger can satify the requirement of 500kw~3000kw high speed diesel engine. This series turbochargers have virtues of simple and compact structure, firmness, durability, low operating cost, high performance and wide applicability, so that they are extensively applicable to marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.
Applicable models
TPS44 | TPS52 |
TPS48 | TPS57 |
TPS50 | TPS61 |
Main Technical Parameters
Type | Overall Dimensions (mm) | Weight(Kg) | |||||||
A | B | C | D | E | F | G | H | ||
TPS48 | 185 | 185 | 111 | 105 | 164 | 195 | 154 | 135 | 115 |
TPS52 | 220 | 215 | 132 | 129 | 187 | 224 | 186 | 161 | 166 |
TPS57 | 270 | 260 | 160 | 158 | 232 | 268 | 225 | 195 | 266 |
TPS61 | 322 | 306 | 193 | 188 | 275 | 320 | 270 | 234 | 458 |
Volume Technical Data
Design Features
Products Features
FAQ
Questions & Answers
Q: When will you deliver the goods?
A: About one week after payment. It also depends on the quantity and whether you need mould making.
Q: How about quality of products?
A: We strictly control every detail of the products. Each product is inspected before leaving factory, with the top quality of China.
Q: How about price?
A: We will offer you the best and competetive price.
Q:Do you accept customized orders?
A: Yes. With design team, OEM and ODM orders are highly welcome.
Q:Which transportation do you accept?
A: DHL, FedEx, EMS etc, as for your convenience.
Q:What about payment terms?
A: T/T, L/C, PayPal and West Union are acceptable.
Q:Can you accept mould making?
A: Yes.
