Vaned Diffuser Type Turbocharger Nozzle Ring For ABB VTC VTC214 VTC254 VTC304

Customer Reviews
I am so glad to cooperate with them. Their products with good quality and pretty competitive price. And their high grade service make me surprise.

—— Andrey Vasilevich morozov

In the past few years, the cooperation has been very enjoyable and we will continue to cooperate in the future.

—— Muhammad Waseem Irshad

I'm so appreciate that I finally find the best manufacturer with high-good quality and competitive prices, and also support customized services.

—— Igor Smirnov

I'm Online Chat Now

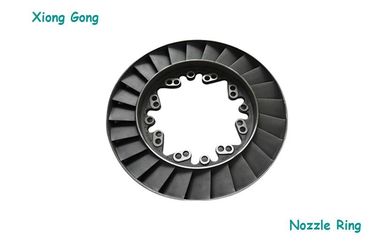

Vaned Diffuser Type Turbocharger Nozzle Ring For ABB VTC VTC214 VTC254 VTC304

Vaned Diffuser Type Turbocharger Nozzle Ring For ABB VTC VTC214 VTC254 VTC304
Vaned Diffuser Type Turbocharger Nozzle Ring For ABB VTC VTC214 VTC254 VTC304

Large Image :  Vaned Diffuser Type Turbocharger Nozzle Ring For ABB VTC VTC214 VTC254 VTC304

Product Details:
Place of Origin: Chongqing,China
Brand Name: BF
Certification: ISO 9001:2000
Model Number: VTC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 5000 pieces per year

Vaned Diffuser Type Turbocharger Nozzle Ring For ABB VTC VTC214 VTC254 VTC304

Description
Engine Type: Diesel Application: Marine, Drilling And Mining Industry
Warranty: 1 Year Delivery: Received Payment
Type: Turbocharger
High Light:

Vaned Diffuser Turbocharger Nozzle Ring

,

Diesel Turbocharger Nozzle Ring

,

Marine Drilling Turbocharger Nozzle Ring

ABB Martine Turbocharger VTC Series Nozzle Ring for Ship Diesel Engine



Products Introduction



The VTC turbocharger is designed for the diesel engine with an output range of 500 to 3,200 kw. The turbocharger is characterized by its high compactness which is achieved through the use of internal plain bearings lubricated by the engine lube oil system.
The VTC turbochargers are no longer in production. They are now fully in service by our global service network and Original Spare parts are available to keep your application running



Applicable models



VTC214
VTC254
VTC304



Main Technical Parameters

Vaned Diffuser Type Turbocharger Nozzle Ring For ABB VTC VTC214 VTC254 VTC304 0



Type Overall Dimensions(mm) Weight(Kg)
A B A+B C A+C D E F E+F G H
ZN250 255 590 845 610 865 652 295 280 575 255 460 350
ZN290 315 725 1040 723 1038 705 350 340 690 300 550 475
ZN290P 315 725 1040 723 1038 705 350 340 690 300 550 525
ZN350 325 855 1180 850 1175 882 415 405 820 340 655 730
ZN350P 325 855 1180 850 1175 882 415 405 820 340 655 780

Volume Technical Data

Vaned Diffuser Type Turbocharger Nozzle Ring For ABB VTC VTC214 VTC254 VTC304 1

Design Features

  • Requirement:filtration rating is less than 20μm
  • Compressor type:centrifugal compressor
  • Pressure plates:vaned diffuser type
  • Cooling method for casings:non-water-cooling method is adopted for gas inlet casing, and water-cooling method for outlet casing.
  • Total efficiency:more than 60%




Products Features

  • VTC turbochargers are of extremely robust design, dimensioned to last the useful life of the engine and undermanding in operation.
  • High reliability is achieved through a commitment of highest manufacturing quality and close tolerances.
  • All spare parts can be used without re-machining.
  • All VTC turbochargers are provided with water connections at the compressor end, enabing them to be washed with water.
