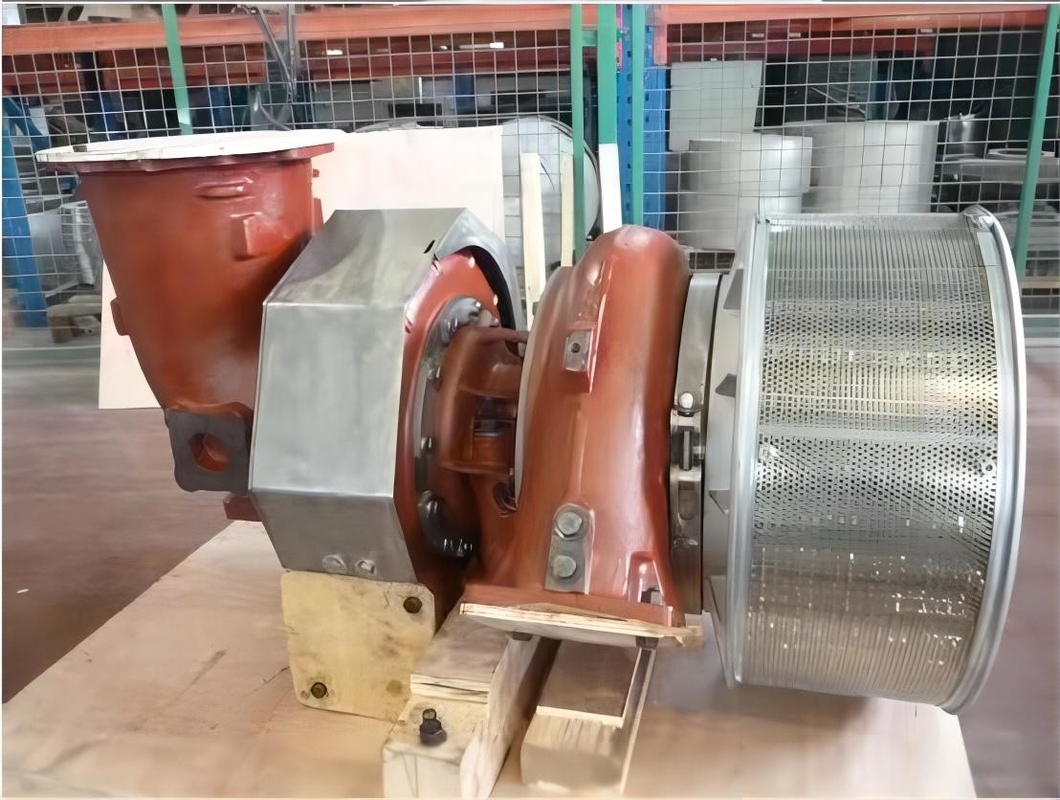

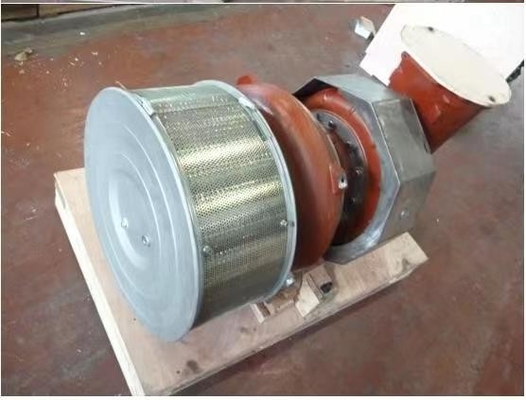

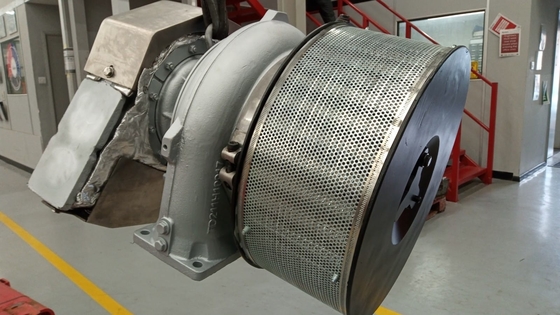

Compact Structure ABB TPS 52-D01 Marine Turbocharger

ABB Turbocharger TPS 52-D01 Introduction

Design Features:

The ABB Turbocharger TPS 52-D01 is engineered with precision and efficiency to deliver optimal performance in various applications. With a focus on enhancing airflow and maximizing power output, this turbocharger boasts advanced design features tailored to meet the demands of ship's high-speed diesel engines and gas engines.

Compressor Design:Featuring a centrifugal compressor equipped with forward and backward curved blades, the TPS 52-D01 ensures efficient air compression and delivery to the engine.

Pressure Plate Configuration:Utilizing a Vane Diffuser Type pressure plate, this turbocharger optimizes airflow distribution and enhances overall performance.

Bearing Box Options:The TPS 52-D01 offers versatility with two bearing box options: water-cooled and non-water-cooled, providing flexibility to suit specific operational requirements.

Performance Metrics:Achieving a total efficiency rating surpassing 62%, the TPS 52-D01 turbocharger ensures optimal energy utilization and engine performance.

Features

1. The TPS 52-D01 turbocharger consists of a mixed-flow turbine and a radial compressor, and the internal bearings are lubricated by engine oil;
2. A single machine can be equipped with 500-3000kw high-speed diesel engine and gas engine;
3. Internally supported semi-floating plain bearings with cooled and non-cooled housing designs;
4. A constant pressure mixing turbine is used to increase the volume flow through the nozzle ring through pulse application;
5. The compressor impeller adopts rear inclined splitter blades to provide pressure in three different periods;
6. T/C comprehensive efficiency is 62%-64%, maximum pressure ratio is 4.5;
7. TPS 52-D01 turbocharger has compact structure and easy maintenance. It is widely used in marine diesel engine auxiliary generator sets or engine sets, etc.

TPS series

The ABB TPS turbocharger is a mixed-flow turbocharger, featuring a single-stage mixed-flow turbine combined with a centrifugal compressor. Employing an inner support semi-floating sliding bearing and an external lubricating oil system, it ensures smooth and reliable operation. The air intake housing offers flexibility, allowing rotation at 15° intervals to accommodate various installation angles, while the turbine housing can freely rotate at 22.5° intervals.

This series of turbochargers offers a flow range of 0.7 to 5m3/s and a compression ratio range of 2.0 to 4.5, achieving an impressive total efficiency of 64%. With a single turbocharger capable of meeting the demands of high-speed diesel engines ranging from 500kW to 3000kW, it presents a versatile solution for diverse applications.

Known for its simple and compact structure, durability, and cost-effectiveness, the ABB TPS turbocharger delivers exceptional performance and finds extensive usage in marine main engines, marine auxiliary engines, generator sets, diesel engines, and other industrial applications.

Main Technical Parameters

Volume Technical Data

Our Service

• All complete turbocharger series and spare parts provided.
• Good quality promised.
• Competitive price.
• 24-hour service available.
• One year warranty .
• Samples and Drawings are welcomed for development.
• Your professional consultant to meet your requirements.
• Certificate can be provided.

​
