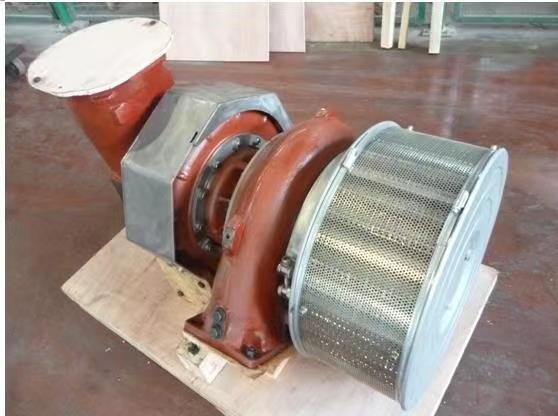

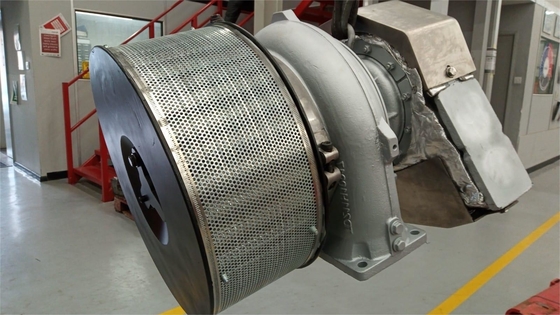

Durability ABB Turbocharger TPS52 D01 Performance Turbochargers

Durability ABB Turbocharger TPS52 D01 Performance Turbochargers​

Features:

Efficient performance optimization:
The ABB TPS52 D01 turbocharger is optimized through 3D-CFD technology to improve the performance of the mixed-flow turbine and achieve high-efficiency compression and boosting to increase engine power output.
The air intake casing is flexible in design and can be adapted to constant pressure and pulse pressure turbocharging systems. It has good adaptability and can be applied to various types of engines.

Advanced bearing design:
High-performance semi-floating support bearings are used to minimize mechanical losses, and special hard coatings are used on the steel bearing parts to improve wear resistance and service life.
The compact sliding bearing layout not only brings ideal rotor dynamic performance, but also extends the service life of the bearings and ensures long-term stable operation.

Optimized compressor design:
The compressor part uses high-performance impellers, diffusers and compressor volutes optimized by 3D-CFD to achieve high pressure ratios and large flow rates, thus improving the efficiency of the compressor.
The high pressure ratio and large specific volume flow can meet future engine requirements and environmental regulations, while the surge margin is expanded through the Wide Compressor Map device (WCM) to improve system stability.

Other features:

1. All non-cooled enclosures are designed to reduce connections and are less susceptible to corrosion, increasing system reliability and durability.
2. Rotor radial speed measurement facilitates speed inspection and ensures stable operation of the equipment.
3. The end of the steam turbine adopts piston ring seal and gas-assisted structure to effectively prevent oil leakage and coking, and improve the sealing performance and reliability of the system.
4. The engine lubricating oil system is used for lubrication, which is easy to install, reduces error sources, and improves the stability and reliability of the system.

TPS series

Main Technical Parameters

Volume Technical Data

ABB TURBOCHARGER VTRNTC/TPS SERIES
A single stage centrifugal compressor and an axial turbine with outboard rolling bearings.It is developed for four-stroke medium-speed and high-speed dlesel engines with a power output range from 450 KW to 3200 KW.	A single stage centrifugal compressor and an axial turbine with inboard flm bearings.It is designed for four-stroke high-speed diesel engines with an output range from 600 KW to 3000 KW.	A single stage centrifugal compressorand a mixed flow turbine with inboard flm bearings.It is developed for four-stroke medium-speed and high-speed diesel engines,with an output range from 350 KW to 3200 KW.

Our Service

• All complete turbocharger series and spare parts provided.
• Good quality promised.
• Competitive price.
• 24-hour service available.
• One year warranty .
• Samples and Drawings are welcomed for development.
• Your professional consultant to meet your requirements.
• Certificate can be provided.

​

FAQ

Questions & Answers
Q: When will you deliver the goods?
A: About one week after payment. It also depends on the quantity and whether you need mould making.

Q: How about quality of products?
A: We strictly control every detail of the products. Each product is inspected before leaving factory, with the top quality of China.

Q: How about price?
A: We will offer you the best and competetive price.

Q:Do you accept customized orders?
A: Yes. With design team, OEM and ODM orders are highly welcome.

Q:Which transportation do you accept?
A: DHL, FedEx, EMS etc, as for your convenience.

Q:What about payment terms?
A: T/T, L/C, PayPal and West Union are acceptable.

Q:Can you accept mould making?
A: Yes.
