Product Details:
|
| Name: | Mitsubishi MET Turbocharger | Engine Type: | Ship Diesel Engine |
|---|---|---|---|
| Application: | Marine, Drilling And Mining Industry | Features: | Low Noise Silencer |
| Type: | Performance Turbochargers | Warranty: | 1 Year |
| High Light: | Ship Diesel Engine MET Turbocharger,Marine Mitsubishi MET Turbocharger,Ship Diesel Engine Mitsubishi MET Turbocharger |
||

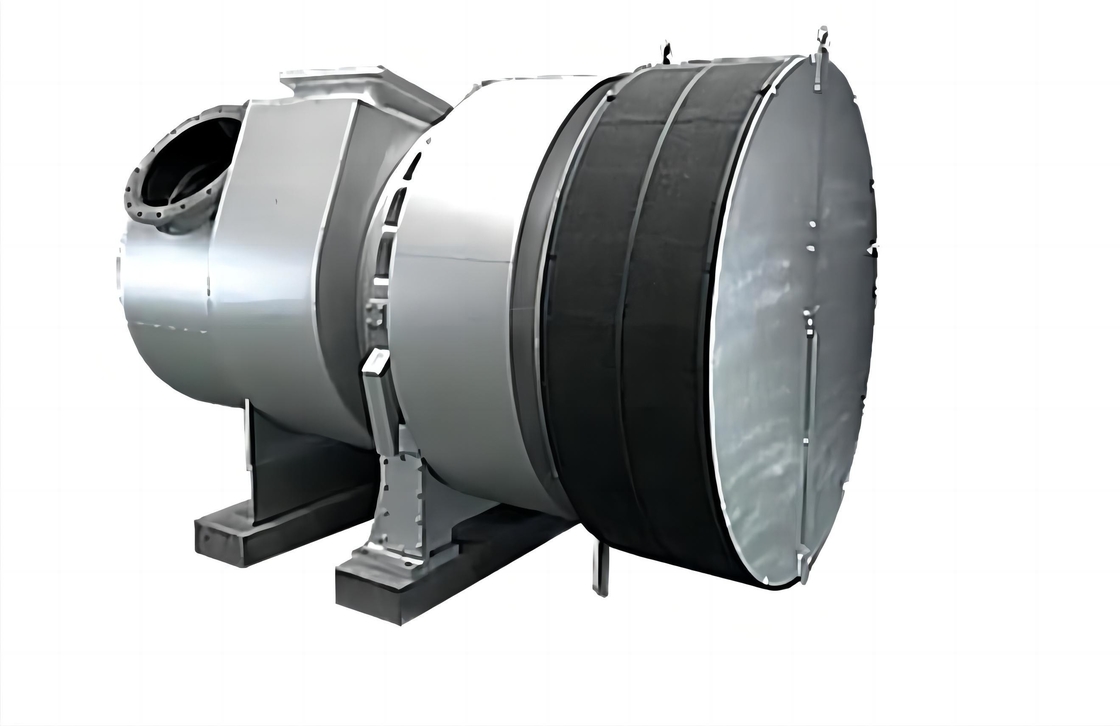

The Mitsubishi Heavy Industries MET turbocharger is the international standard exhaust gas turbocharger for large ships and stationary diesel engines.

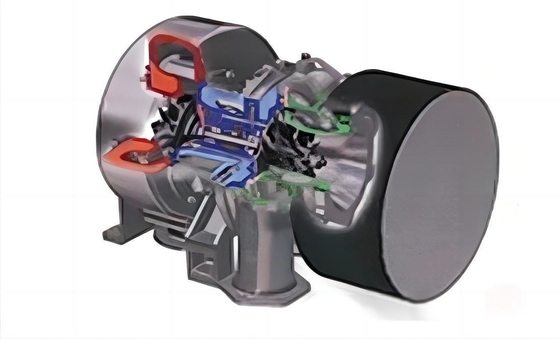

Mitsubishi Heavy Industries' composite MET turbocharger has a built-in generator and a compact design, which uses rotational energy to generate electricity while boosting pressure. The hybrid MET turbocharger delivers all the power needed to navigate and reduce fuel consumption.
Waterless corrosion-resistant air-cooled air intake housing:
The water-free and corrosion-resistant air-cooled air intake housing design ensures that the turbocharger housing is not susceptible to corrosion and improves service life and reliability.
Long life plain bearings:
It adopts long-life plane bearings with excellent wear resistance and stability, providing reliable guarantee for the long-term operation of the equipment.
Internal bearing arrangement facilitates maintenance:
The internal bearing configuration design facilitates maintenance and maintenance, reducing maintenance costs and workload.
Built-in pressure cabinet reduces installation costs:
The equipment has a built-in pressure cabinet, which reduces installation costs, improves installation efficiency, and saves users time and costs.
Low noise silencer:
The use of a low-noise muffler with low noise loss reduces the noise level during operation and improves comfort and environmental friendliness.
| MET 35 | MET 56S/SA | MET 42SE | MET 53SC |
| MET 350 | MET 33SB | MET 53SB | MET 18SRC |
| MET 35S/SA | MET 33SC | MET 53SD | MET 22SR |
| MET 45 | MET 33SD | MET 53SE | MET 26SR |
| MET 450 | MET 33SE | MET 66SB | MET 30SR |
| MET 45S/SA | MET 42SB | MET 66SC | |
| MET 56 | MET 42SC | MET 66SD | |
| MET 560 | MET 42SD | MET 66SE |
Main Technical Parameters
| Type | MET 33SE | MET 42SE | MET 63SE | MET 66SE | MET 71SE | MET 83SE | MET 90SE | ||||||
| model | Blade size | 2 | 3 | 2 | 3 | 2 | 3 | 2 | 3 | 3 | 2 | 3 | 3 |
| Maximum allowable speed | Min-1 | 29660 | 27990 | 23940 | 22600 | 18880 | 17810 | 15150 | 14300 | 13210 | 11960 | 11300 | 10240 |
| Maximum continuous allowable gas temperature | ℃ | 580 | |||||||||||
| The maximum instantaneous allowable gas temperature | ℃ | 610 | |||||||||||
| Air flow (pressure rate 3.5) | m3/s | 3.1-7.1 | 4.7-11.0 | 7.5-17.5 | 12.0-27.0 | 25.2-31.7 | 18.8-42.2 | 35.0-52.8 | |||||
| Diesel engine output range | kw | 1300-3200 | 2700-5000 | 4400-8000 | 6900-12500 | 8300-14700 | 11400-20100 | 16500-24000 | |||||
Volume Technical Data
